Rohm
BDE0900G-TR
Analog Voltage Output Sensor, 1.716V Min, 1.79V Max, 3.5Cel, Rectangular, 5 Pin, Surface Mount, 2.90 X 2.80 MM, 1.25 MM HEIGHT, SSOP-5
PackageSSOP
Current16uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BDE0900G-TR technical specifications.
General
Package/Case
SSOP
Contact Plating
Copper, Tin
Height
1.1mm
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
130°C
Min Operating Temperature
-30°C
Max Output Current
5mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.9V
Mount
Surface Mount
Operating Supply Current
16uA
Output Type
Analog
Output Voltage
1.75V
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
16uA
Switching Temperature
90°C
Termination
SMD/SMT
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Rohm BDE0900G-TR Datasheet
Download the complete datasheet for Rohm BDE0900G-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

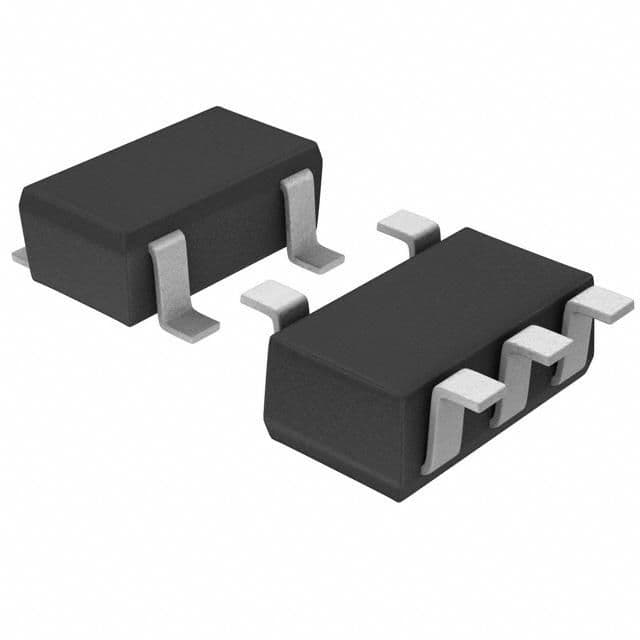

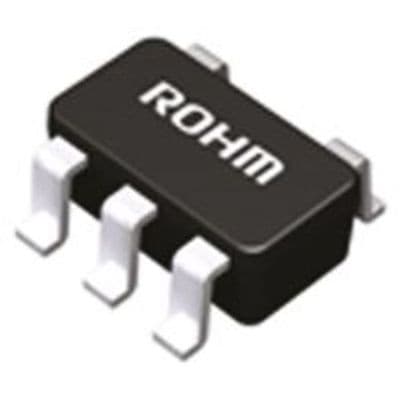

Product Images
