Technical Specifications
Rohm BDE1204G-TR technical specifications.
General
Package/Case
SSOP
Height
1.1mm
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
130°C
Min Operating Temperature
-30°C
Max Output Current
5mA
Max Power Dissipation
540mW
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.9V
Max Supply Voltage
5.5V
Min Supply Voltage
2.9V
Mount
Surface Mount
Operating Supply Current
16uA
Output Current
1.2mA
Output Type
Analog
Output Voltage
1.75V
Packaging
Tape and Reel
Reach SVHC Compliant
No
Supply Current
16uA
Switching Temperature
120°C
Termination
SMD/SMT
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Rohm BDE1204G-TR Datasheet
Download the complete datasheet for Rohm BDE1204G-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

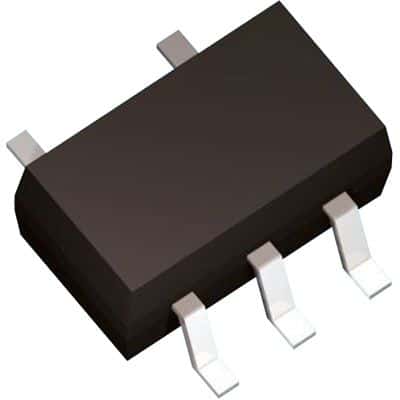

Product Images
