The BDJ0801HFV-TR is a surface mount temperature sensor with a maximum operating temperature of 100°C and a minimum operating temperature of -30°C. It features a maximum output current of 1.2mA and a maximum supply voltage of 5.5V. The device is packaged in a SOT-665 case and is available in quantities of 3000. The BDJ0801HFV-TR is RoHS compliant and has a switching temperature of 80°C.
PackageSOT-665
Current7.5uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BDJ0801HFV-TR technical specifications.
General
| Package/Case | SOT-665 |
| Contact Plating | Copper, Tin |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 5mA |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.4V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Operating Supply Current | 7.5uA |
| Output Current | 1.2mA |
| Output Type | Analog |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 7.5uA |
| Switching Temperature | 80°C |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BDJ0801HFV-TR Datasheet
Download the complete datasheet for Rohm BDJ0801HFV-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

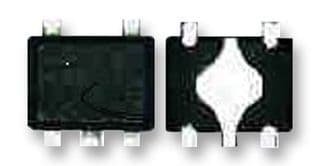

Product Images
