Technical Specifications
Rohm BP5726-15 technical specifications.
General
| Package/Case | SIP |
| Efficiency | 85% |
| Height | 1.07inch |
| Length | 0.89inch |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 800mA |
| Max Power Dissipation | 12W |
| Max Supply Voltage (AC) | 300V |
| Min Supply Voltage (AC) | 170V |
| Max Supply Voltage (DC) | 390V |
| Min Supply Voltage (DC) | 240V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 800mA |
| Package Quantity | 150 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | BP5726-15 |
| Voltage - Output 1 | 15V |
| Width | 0.31inch |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BP5726-15 Datasheet
Download the complete datasheet for Rohm BP5726-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

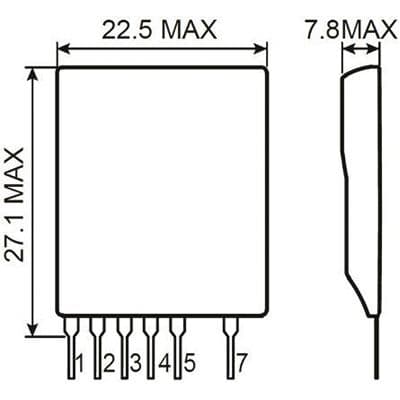

Product Images
