1Kb Serial EEPROM memory, organized as 128 x 8 bits, featuring an I2C interface. This CMOS semiconductor IC operates with a maximum frequency of 400kHz and a maximum access time of 900ns. It supports a supply voltage range from 1.8V to 5.5V and is housed in an SSOP package for surface mounting. The component is RoHS compliant and offers write protection.
Frequency400kHz
PackageSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BR24L01AFV-WE2 technical specifications.
General
| Access Time-Max | 900ns |
| Package/Case | SSOP |
| Contact Plating | Tin |
| Density | 1Kb |
| Frequency | 400kHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Organization | 128 x 8 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Supply Voltage-Nom | 5.5V |
| Termination | SMD/SMT |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BR24L01AFV-WE2 Datasheet
Download the complete datasheet for Rohm BR24L01AFV-WE2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

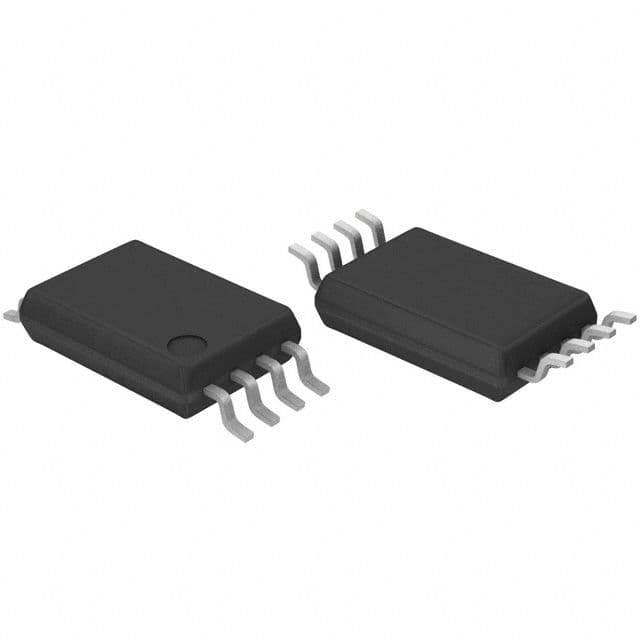

Product Images
