2Kb Serial EEPROM memory, 256 x 8 organization, featuring a 2-Wire I2C interface. Operates with a supply voltage range of 1.8V to 5.5V, with a nominal 5.5V. Offers access times as fast as 900ns and a maximum operating frequency of 100kHz. Packaged in an MSOP (PDSO8) for surface mounting, with copper and tin contact plating. This RoHS compliant component includes write protection and operates within a temperature range of -40°C to 85°C.
Frequency400kHz
PackageMSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BR24L02FVM-WTR technical specifications.
General
Access Time
3500ns
Access Time-Max
900ns
Package/Case
MSOP
Contact Plating
Copper, Tin
Density
2Kb
Frequency
400kHz
Interface
2-Wire, I2C, Serial
Lead Free
Lead Free
Max Frequency
100kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Surface Mount
Organization
256 x 8
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Rohm BR24L02FVM-WTR Datasheet
Download the complete datasheet for Rohm BR24L02FVM-WTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

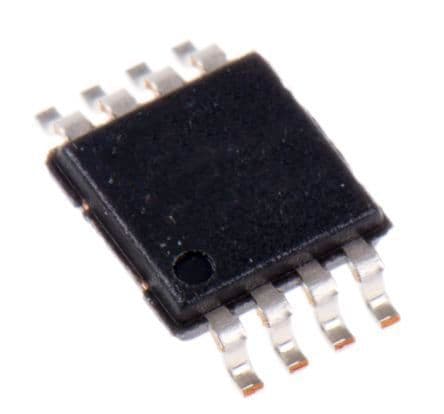

Product Images
