CMOS power supply support circuit featuring a fixed 2.7V threshold voltage with 1% accuracy. This surface mount IC monitors a single voltage channel, providing an active low reset output. Operating from 700mV to 7V, it exhibits a low supply current of 550nA and a maximum power dissipation of 210mW. Designed for tape and reel packaging, this component is RoHS compliant and suitable for operation between -40°C and 125°C.
PackageVSOF
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BU4227FVE-TR technical specifications.
General
Accuracy
1%
Package/Case
VSOF
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
210mW
Max Reset Threshold Voltage
2.727V
Min Reset Threshold Voltage
2.673V
Max Supply Current
1.75uA
Max Supply Voltage
7V
Min Supply Voltage
700mV
Mount
Surface Mount
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
550nA
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Reset
Active Low
RoHS Compliant
Yes
Series
BU42
Threshold Voltage
2.7V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Rohm BU4227FVE-TR Datasheet
Download the complete datasheet for Rohm BU4227FVE-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

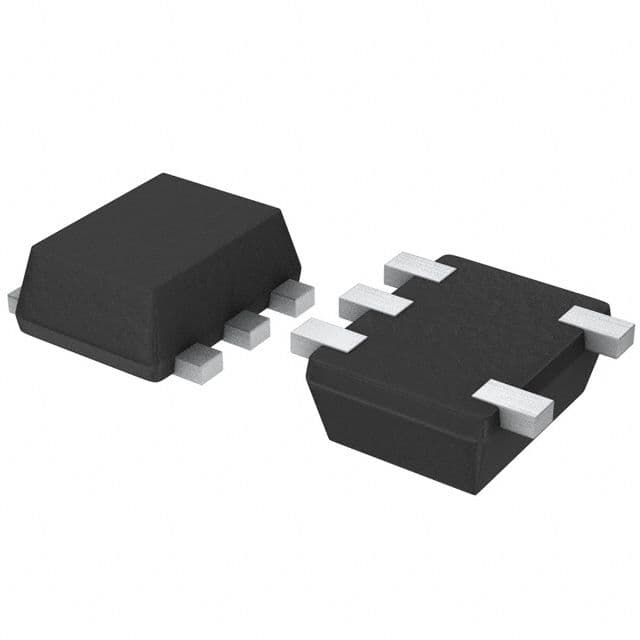

Product Images
