The BU52014HFV-TR is a surface mount omnipolar switch from Rohm, available in a SOT-665 package. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The device has a maximum output current of 500uA and a maximum power dissipation of 536mW. It can be supplied with a voltage between 1.65V and 3.3V and has a maximum supply current of 8uA.
PackageSOT-665
Current5uA
Current Rating5uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BU52014HFV-TR technical specifications.
General
| Package/Case | SOT-665 |
| Contact Plating | Copper, Tin, Silver |
| Current Rating | 5uA |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500uA |
| Max Power Dissipation | 536mW |
| Max Supply Current | 8uA |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.8V |
| Output Current | 500uA |
| Output Type | PUSH-PULL |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 536mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5uA |
| Termination | SMD/SMT |
| Type | Omnipolar Switch |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BU52014HFV-TR Datasheet
Download the complete datasheet for Rohm BU52014HFV-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

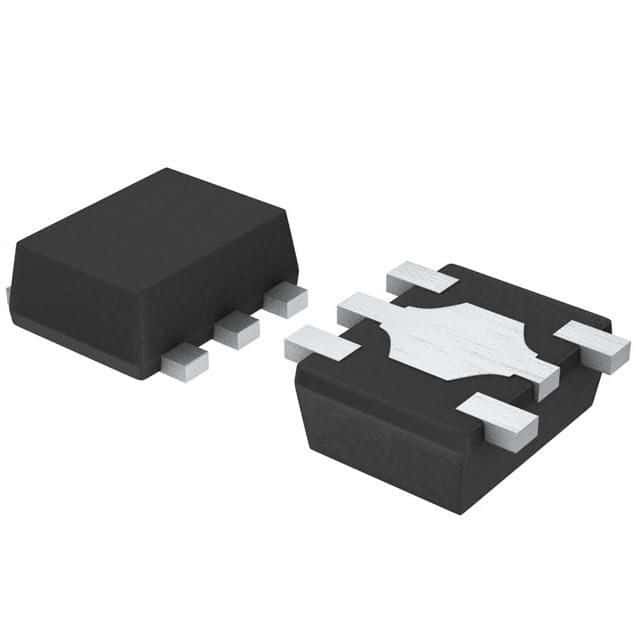

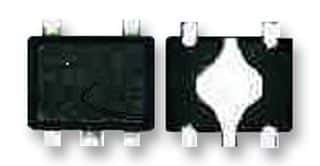

Product Images
