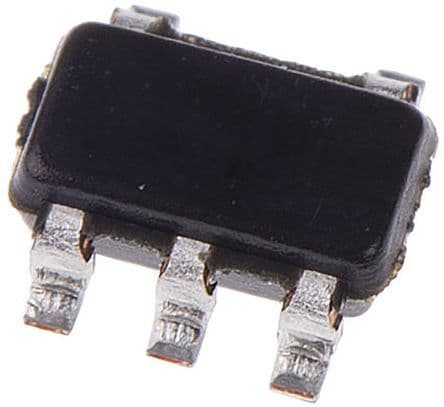

The BU7265G-TR is a single operational amplifier with a gain bandwidth product of 4kHz and an input bias current of 1pA. It features an input offset voltage of 1mV and an operating supply current of 350nA. This op amp is suitable for general-purpose applications and is packaged in a surface-mount SSOP package. It is compliant with RoHS regulations and has a maximum operating temperature of 85°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BU7265G-TR technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 4kHz |
| Package/Case | SSOP |
| Gain Bandwidth Product | 4kHz |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 1mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 350nA |
| Output Current per Channel | 4mA |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Slew Rate | 0.024V/µs |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BU7265G-TR Datasheet
Download the complete datasheet for Rohm BU7265G-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
