PackageSOT-416-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm DAN217WTL technical specifications.
General
Average Rectified Current
100mA
Package/Case
SOT-416-3
Forward Current
100mA
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
150mW
Max Repetitive Reverse Voltage (Vrrm)
80V
Max Reverse Leakage Current
100nA
Max Reverse Voltage (DC)
80V
Max Surge Current
4A
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
4A
Radiation Hardening
No
Reverse Recovery Time
4ns
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Rohm DAN217WTL Datasheet
Download the complete datasheet for Rohm DAN217WTL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

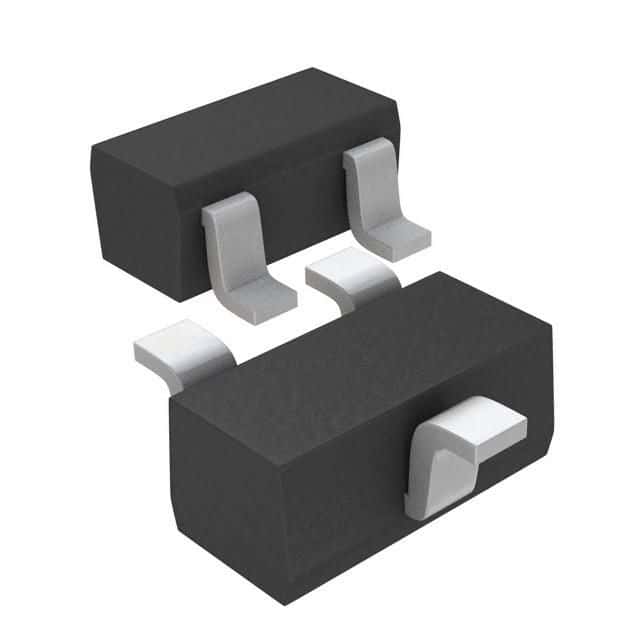

Product Images
