The DTA115EMT2L is a surface mount PNP transistor with a collector-emitter breakdown voltage of 50V and a maximum collector current of 20mA. It operates over a temperature range of -55°C to 150°C and is compliant with RoHS regulations. The transistor is packaged in a SOT-723 small outline package and is available on tape and reel.
PackageSOT-723
Current Rating-100mA
MountingSurface Mount
PolarityPNP
Quick Jump:
Technical Specifications
Rohm DTA115EMT2L technical specifications.
General
| Package/Case | SOT-723 |
| Collector Emitter Breakdown Voltage | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Current Rating | -100mA |
| hFE Min | 82 |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| DC Rated Voltage | -50V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm DTA115EMT2L Datasheet
Download the complete datasheet for Rohm DTA115EMT2L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

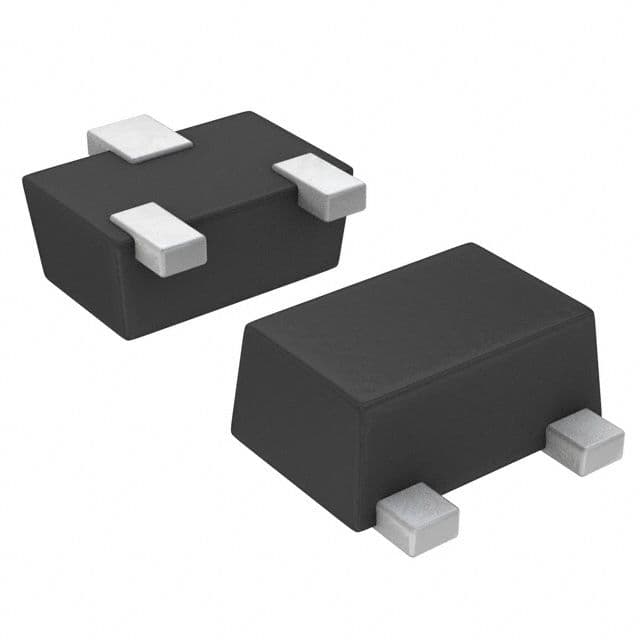

Product Images
