The DTA143ESATP is a PNP bipolar junction transistor with a collector-emitter breakdown voltage of 50V and a maximum collector current of 100mA. It has a maximum power dissipation of 300mW and operates within a temperature range of -55°C to 150°C. The transistor is packaged in a SC package and is mounted through a hole. It is lead-free and RoHS compliant.
PackageSC
Current Rating-100mA
MountingThrough Hole
PolarityPNP
Quick Jump:
Technical Specifications
Rohm DTA143ESATP technical specifications.
General
| Package/Case | SC |
| Collector Emitter Breakdown Voltage | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Current Rating | -100mA |
| hFE Min | 30 |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| DC Rated Voltage | -50V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm DTA143ESATP Datasheet
Download the complete datasheet for Rohm DTA143ESATP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

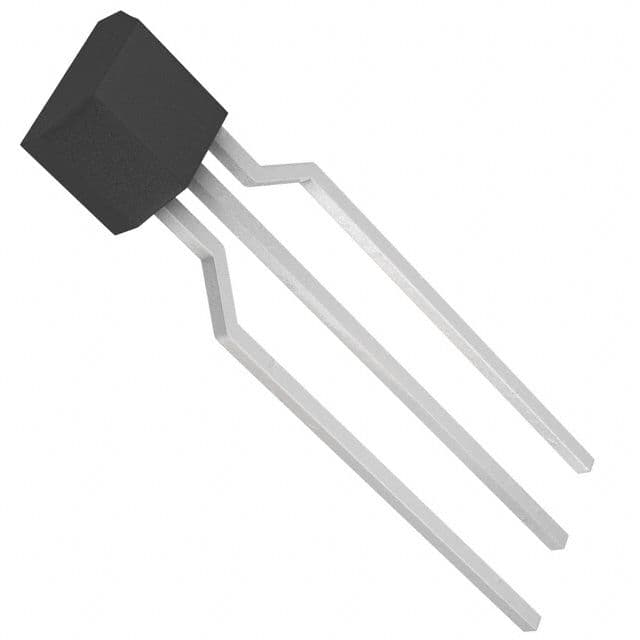

Product Images
