The DTB743EETL is a surface mount NPN transistor with a collector-emitter breakdown voltage of 30V and a maximum collector current of 200mA. It operates within a temperature range of -55°C to 150°C and has a maximum power dissipation of 150mW. This transistor is RoHS compliant and available in a package quantity of 3000 units per reel.
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Rohm DTB743EETL technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector-emitter Voltage-Max | 300mV |
| hFE Min | 115 |
| Max Breakdown Voltage | 30V |
| Max Collector Current | 200mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 260MHz |
Compliance
| RoHS | Compliant |
Datasheet
Rohm DTB743EETL Datasheet
Download the complete datasheet for Rohm DTB743EETL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

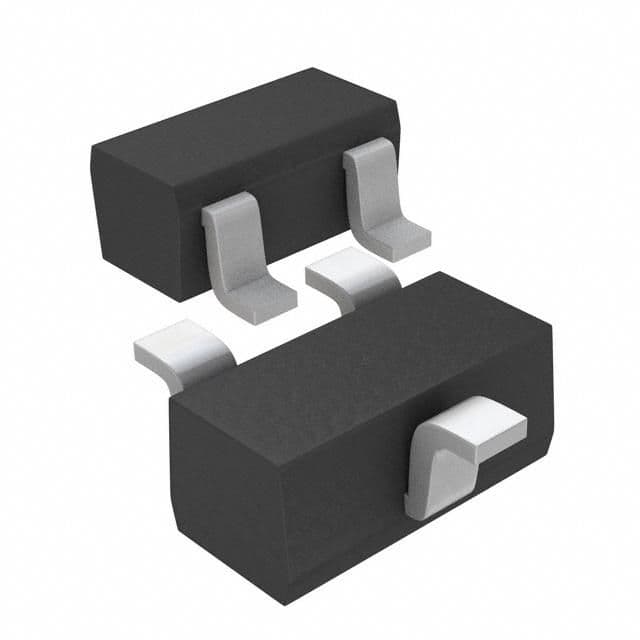

Product Images
