Technical Specifications
Rohm DTC114YUBTL technical specifications.
General
| Package/Case | SC |
| Collector Emitter Breakdown Voltage | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Continuous Collector Current | 100mA |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 500nA |
| Max Frequency | 250MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Output Voltage | 100mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
Compliance
| RoHS | Compliant |
Datasheet
Rohm DTC114YUBTL Datasheet
Download the complete datasheet for Rohm DTC114YUBTL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

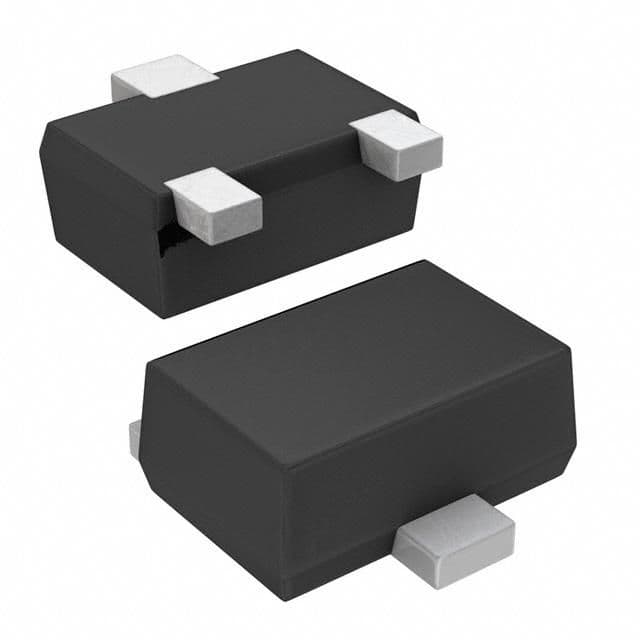

Product Images
