The DTC143EEBTL is a surface mount NPN bipolar junction transistor with a collector-emitter breakdown voltage of 50V and a maximum collector current of 100mA. It operates within a temperature range of -55°C to 150°C and has a maximum power dissipation of 150mW. This lead-free device is RoHS compliant and available in a tape and reel packaging format with 3000 units per package.
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Rohm DTC143EEBTL technical specifications.
General
| Collector Emitter Breakdown Voltage | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Continuous Collector Current | 100mA |
| hFE Min | 30 |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
Compliance
| RoHS | Compliant |
Datasheet
Rohm DTC143EEBTL Datasheet
Download the complete datasheet for Rohm DTC143EEBTL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

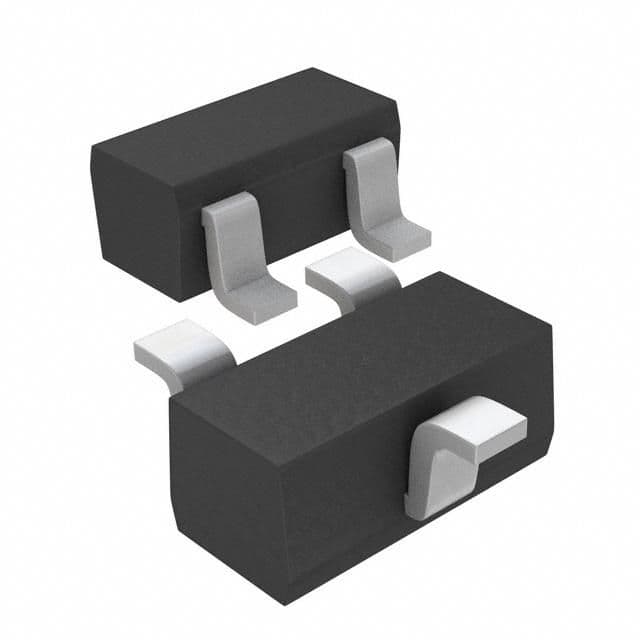

Product Images
