NPN silicon bipolar junction transistor for small signal applications. Features a 50V collector-emitter breakdown voltage (VCEO) and a maximum continuous collector current of 100mA. This surface mount device, packaged in SOT-723, offers a minimum hFE of 80 and a transition frequency of 250MHz. Maximum power dissipation is 150mW, with an operating temperature range of -55°C to 150°C. The component is RoHS compliant.
PackageSOT-723
Current Rating100mA
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Rohm DTC143ZMT2L technical specifications.
General
| Package/Case | SOT-723 |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Continuous Collector Current | 100mA |
| Current Rating | 100mA |
| hFE Min | 80 |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Operating Supply Voltage | 50V |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Transition Frequency | 250MHz |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm DTC143ZMT2L Datasheet
Download the complete datasheet for Rohm DTC143ZMT2L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

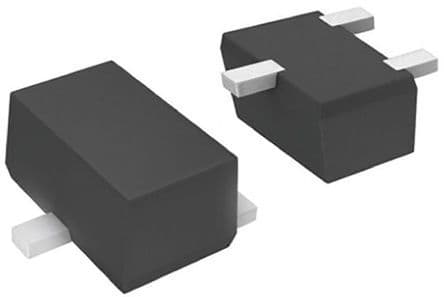

Product Images
