Technical Specifications

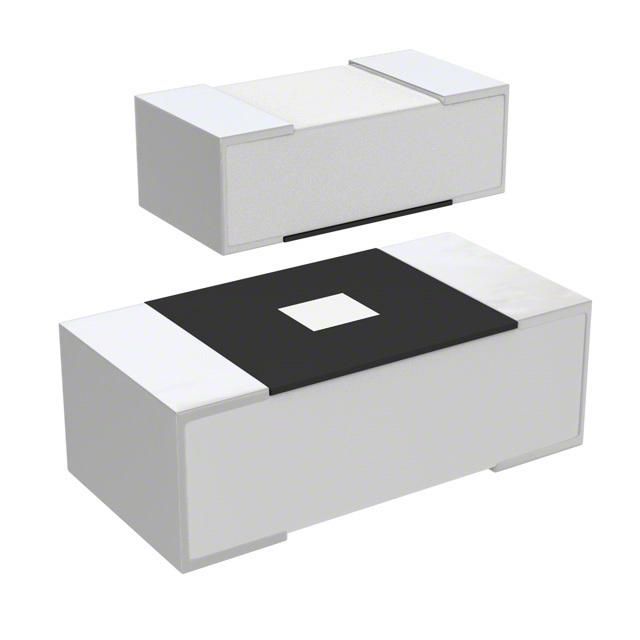

Rohm ESR10EZPJ123 technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin |
| Features | Automotive AEC-Q200 |
| Height | 0.026inch |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Resistance | 12kR |
| RoHS Compliant | Yes |
| Series | ESR |
| Tolerance | 5% |
| Voltage Rating | 150V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Rohm ESR10EZPJ123 Datasheet
Download the complete datasheet for Rohm ESR10EZPJ123 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
