Technical Specifications
Rohm FTZ5.6ET148 technical specifications.
General
| Package/Case | SMD/SMT |
| Impedance | 60R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Reverse Current | 1uA |
| Max Reverse Leakage Current | 1uA |
| Mount | Surface Mount |
| Number of Contacts | 5 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 5.6V |
| Voltage Tolerance | 5% |
| Working Voltage | 5.6V |
| Zener Voltage | 5.615V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm FTZ5.6ET148 Datasheet
Download the complete datasheet for Rohm FTZ5.6ET148 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

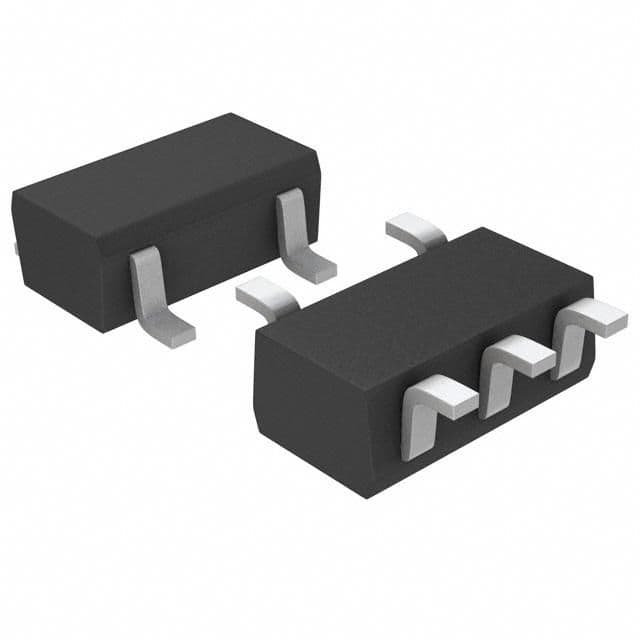

Product Images
