The RB550VA-30TR is a general purpose rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum reverse voltage of 30V and a maximum reverse current of 30uA. The diode is rated for a maximum forward surge current of 3A and a maximum repetitive reverse voltage of 30V. It is available in a surface mount package and is lead free.
PackageSMD/SMT
Current Rating1A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Rohm RB550VA-30TR technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SMD/SMT |
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 1.9mm |
| Max Forward Surge Current (Ifsm) | 3A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 30uA |
| Max Reverse Voltage (DC) | 30V |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 3A |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB550VA-30TR Datasheet
Download the complete datasheet for Rohm RB550VA-30TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

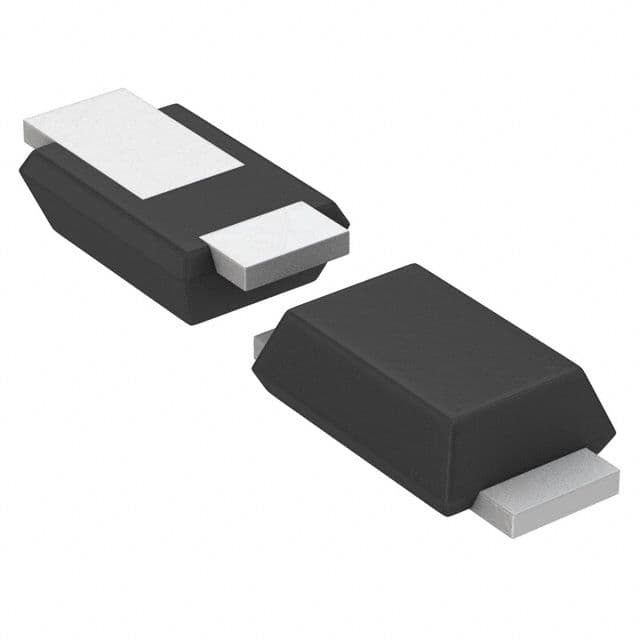

Product Images
