Voltage Rating16V
MountingSurface Mount
PolarityBidirectional
Power200mW
Quick Jump:
Technical Specifications
Rohm RSB16VTE-17 technical specifications.
General
Diode Type
ZENER
Lead Free
Lead Free
Min Breakdown Voltage
14.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Max Reverse Current
100nA
Max Reverse Leakage Current
100nA
Max Surge Current
100nA
Mount
Surface Mount
Number of Bidirectional Channels
1
Operating Supply Voltage
17.6V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Bidirectional
Power Dissipation
200mW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Working Voltage
16V
Zener Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Rohm RSB16VTE-17 Datasheet
Download the complete datasheet for Rohm RSB16VTE-17 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

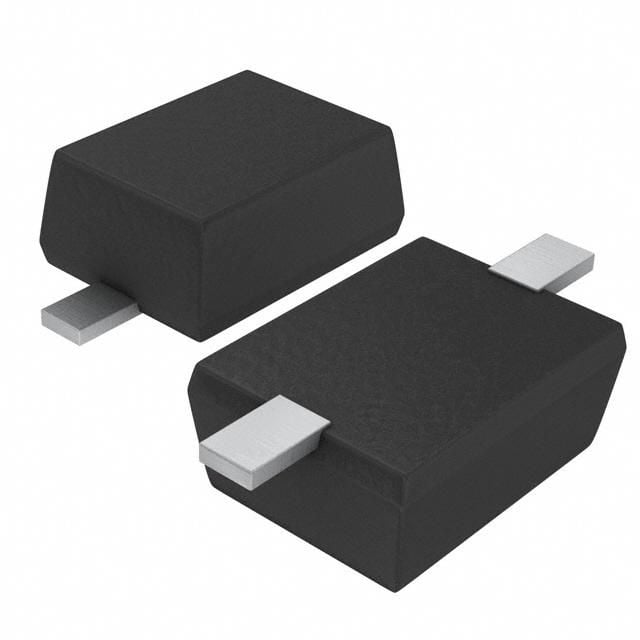

Product Images
