Bidirectional Transient Voltage Suppressor (TVS) Diode, designed for surface mount applications. Features a 6.8V DC rated voltage and 5.78V minimum breakdown voltage, with a 3.5V reverse standoff voltage. Offers 10W peak pulse power and 100mW power dissipation, operating across a -55°C to 150°C temperature range. This RoHS compliant component has a typical capacitance of 15pF and is supplied in tape and reel packaging.
PackageSMD/SMT
Capacitance15pF
Voltage Rating6.8V
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm RSB6.8GT2R technical specifications.
General
Capacitance
15pF
Package/Case
SMD/SMT
Diode Type
ZENER
Direction
Bidirectional
Height
0.5mm
Lead Free
Lead Free
Length
1mm
Min Breakdown Voltage
5.78V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Max Reverse Current
500nA
Max Reverse Leakage Current
500nA
Mount
Surface Mount
Number of Bidirectional Channels
1
Package Quantity
8000
Packaging
Tape and Reel
Peak Pulse Power
10W
Power Dissipation
100mW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
3.5V
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
130um
DC Rated Voltage
6.8V
Width
0.6mm
Working Voltage
6.8V
Compliance
RoHS
Compliant
Datasheet
Rohm RSB6.8GT2R Datasheet
Download the complete datasheet for Rohm RSB6.8GT2R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

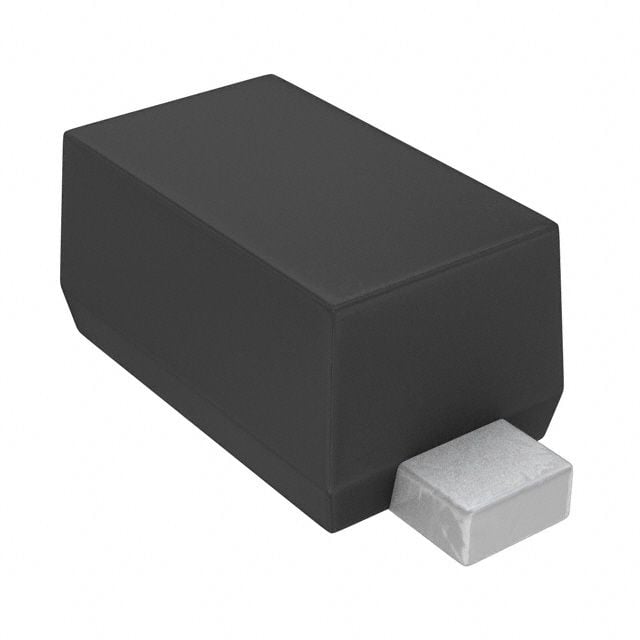

Product Images
