Technical Specifications
Rohm SCS120AGC technical specifications.
General
| Average Rectified Current | 20A |
| Package/Case | TO-220-2 |
| Forward Current | 20A |
| Lead Free | Lead Free |
| Max Power Dissipation | 97W |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 400uA |
| Max Reverse Leakage Current | 400uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 80A |
| Mount | Through Hole |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 80A |
| Radiation Hardening | No |
| Reverse Recovery Time | 0ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rohm SCS120AGC Datasheet
Download the complete datasheet for Rohm SCS120AGC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

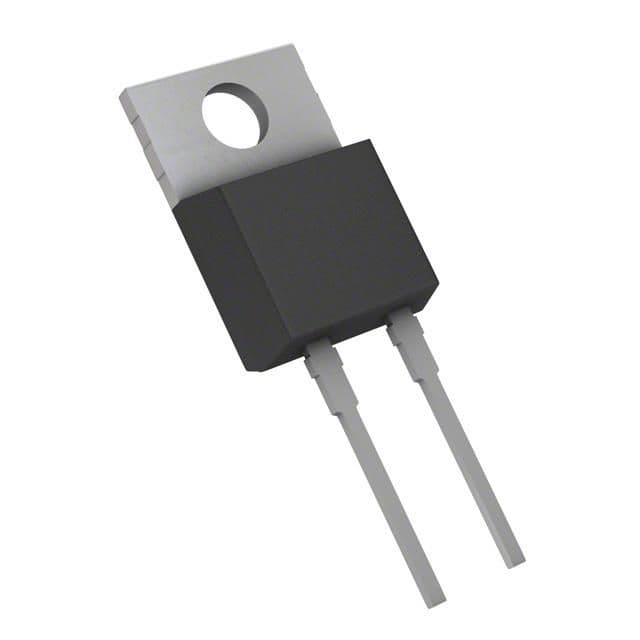

Product Images
