Rohm
SCS220KE2C
Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 1200V V(RRM), Silicon Carbide, TO-247, TO-247, 3 PIN
PackageTO-247
MountingThrough Hole
Power280W
Quick Jump:
Technical Specifications
Rohm SCS220KE2C technical specifications.
General
Average Rectified Current
10A
Package/Case
TO-247
Forward Current
20A
Height
20.95mm
Lead Free
Lead Free
Length
15.9mm
Max Forward Surge Current (Ifsm)
340A
Max Operating Temperature
175°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
200uA
Max Reverse Voltage (DC)
1.2kV
Mount
Through Hole
Packaging
Bulk
Power Dissipation
280W
Reach SVHC Compliant
Unknown
Reverse Recovery Time
0ns
RoHS Compliant
Yes
Width
5.03mm
Compliance
RoHS
Compliant
Datasheet
Rohm SCS220KE2C Datasheet
Download the complete datasheet for Rohm SCS220KE2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

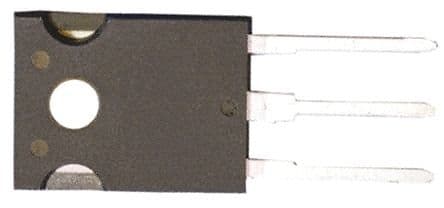

Product Images
