Technical Specifications
Rohm TDZTR10 technical specifications.
General
| Package/Case | SMD/SMT |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 10uA |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Voltage Tolerance | 10% |
| Zener Current | 10mA |
| Zener Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm TDZTR10 Datasheet
Download the complete datasheet for Rohm TDZTR10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

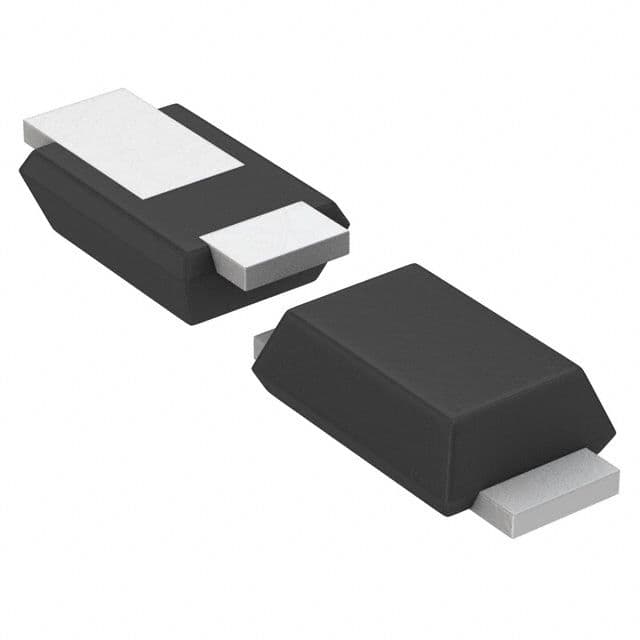

Product Images
