NPN silicon bipolar junction transistor for surface mount applications. Features a 40V collector-emitter breakdown voltage and 600mA continuous collector current. Offers a minimum DC current gain (hFE) of 35 and a transition frequency of 300MHz. Operates within a temperature range of -55°C to 150°C, with a maximum power dissipation of 200mW. Packaged in SOT-23 for tape and reel delivery.
PackageSOT-23
Current Rating600mA
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Rohm UMT2222AT106 technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 75V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 40V |
| Collector-emitter Voltage-Max | 1V |
| Continuous Collector Current | 600mA |
| Current Rating | 600mA |
| Emitter Base Voltage (VEBO) | 6V |
| Gain Bandwidth Product | 300MHz |
| hFE Min | 35 |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 600mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 300MHz |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm UMT2222AT106 Datasheet
Download the complete datasheet for Rohm UMT2222AT106 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

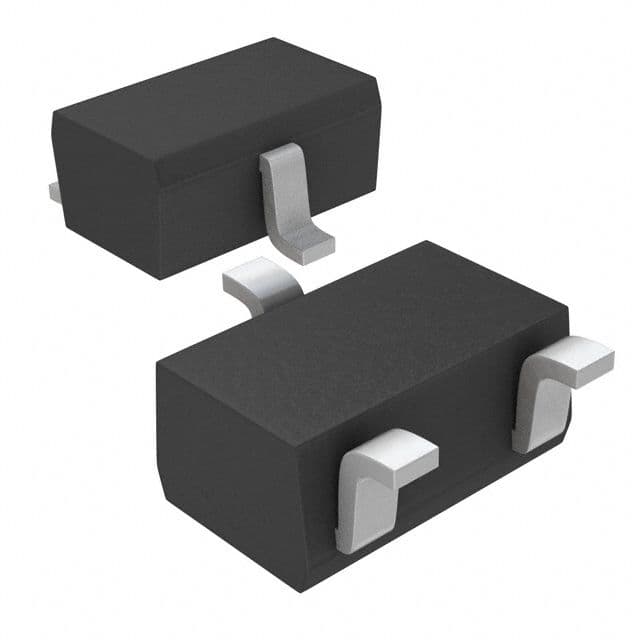

Product Images
