Aluminum electrolytic capacitor with 150µF capacitance and 100V DC rated voltage. Features a 10000-hour life at 105°C, 1.43A ripple current, and 85mΩ impedance. This radial component has a 5mm lead pitch, 0.6mm lead diameter, and measures 12.5mm in diameter by 20mm in height. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage100V
Capacitance150uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Rubycon 100ZLH150MEFC12.5X20 technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Height
20mm
Height - Seated (Max)
0.866inch
Impedance
85mR
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
3uA
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
1.43A
RoHS Compliant
Yes
Series
ZLH
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Rubycon 100ZLH150MEFC12.5X20 Datasheet
Download the complete datasheet for Rubycon 100ZLH150MEFC12.5X20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

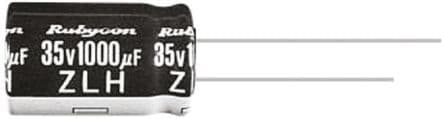

Product Images
