100V, 330µF polarized aluminum electrolytic capacitor with 20% tolerance. Features a radial leaded, through-hole mount package with a 12.5mm diameter and 35mm height. Offers 2.6A ripple current, 36mΩ impedance, and a leakage current of 3µA. Operates across a -40°C to 105°C temperature range with a 10,000-hour life rating. RoHS compliant.
PackageRadial
Voltage100V
Capacitance330uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Rubycon 100ZLJ330M12.5X35 technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Height
35mm
Impedance
36mR
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
3uA
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.6A
Ripple Current (AC)
2.6A
RoHS Compliant
Yes
Series
ZLJ
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Rubycon 100ZLJ330M12.5X35 Datasheet
Download the complete datasheet for Rubycon 100ZLJ330M12.5X35 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

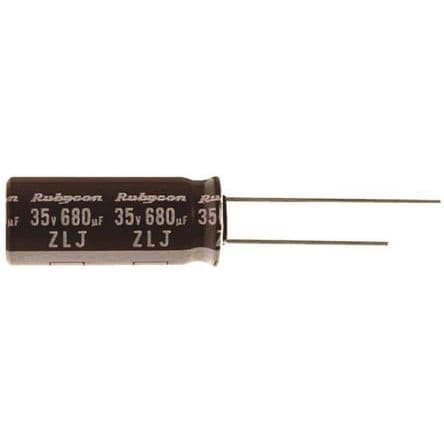

Product Images
