Rubycon
16YXJ220MT16.3X11
Cap Aluminum Lytic 220uF 16V 20% (6.3 X 11mm) Radial 2.5mm 400mA 7000h 105°C Ammo
PackageRadial
Capacitance220uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Rubycon 16YXJ220MT16.3X11 technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Diameter
6.3mm
Features
General Purpose
Height
11mm
Height - Seated (Max)
0.492inch
Impedance
220mR
Lead Free
Lead Free
Lead Pitch
0.098inch
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
2000
Packaging
Cut Tape
Reach SVHC Compliant
No
Ripple Current
280mA
RoHS Compliant
Yes
Series
YXJ
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Rubycon 16YXJ220MT16.3X11 Datasheet
Download the complete datasheet for Rubycon 16YXJ220MT16.3X11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

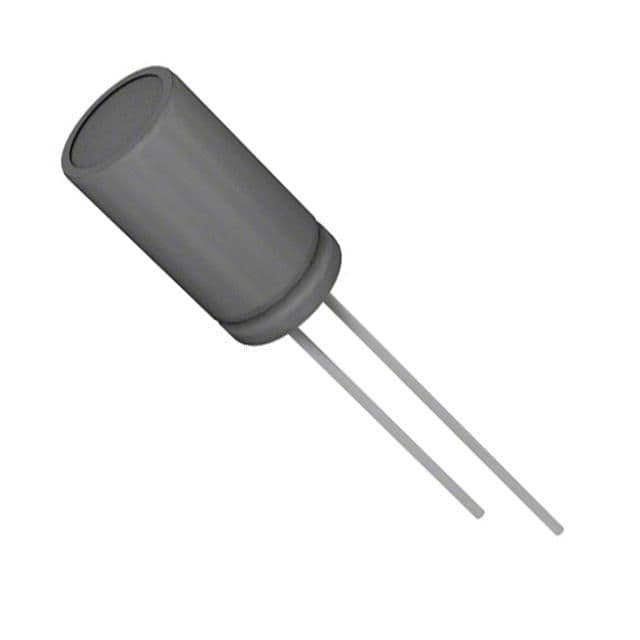

Product Images
