Radial aluminum electrolytic capacitor with 680µF capacitance and 16V DC rated voltage. Features 20% tolerance, 1.33A ripple current, and low impedance of 39mΩ. Designed for through-hole mounting with a 5mm lead pitch and 10x12.5mm radial package. Operates from -40°C to 105°C with a 10,000-hour lifespan. RoHS compliant.
PackageRadial
Voltage16V
Capacitance680uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Rubycon 16ZLH680MEFC10X12.5 technical specifications.
General
Capacitance
680uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Height
12.5mm
Impedance
39mR
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
3uA
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.33A
Ripple Current (AC)
1.33A
RoHS Compliant
Yes
Series
ZLH
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Rubycon 16ZLH680MEFC10X12.5 Datasheet
Download the complete datasheet for Rubycon 16ZLH680MEFC10X12.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

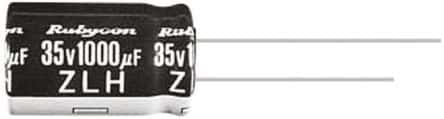

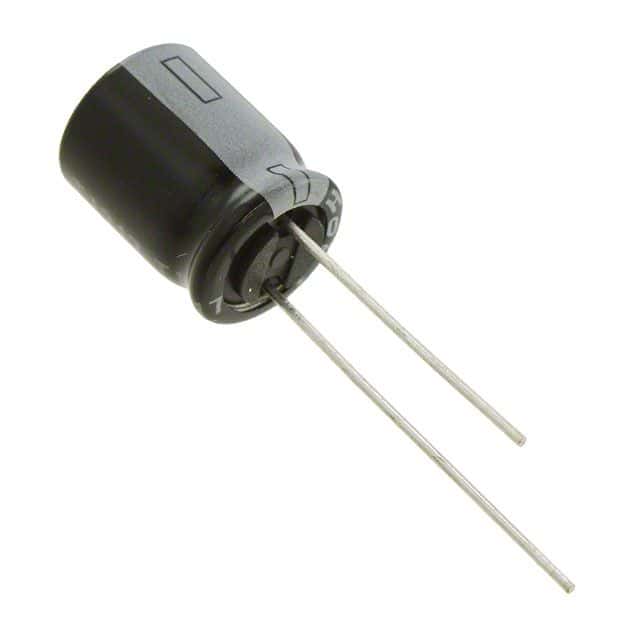

Product Images
