Rubycon
200LLE10MEFC8X11.5
Cap Aluminum Lytic 10uF 200V 20% (8 X 11.5mm) Radial 3.5mm 80mA 15000h 105°C
PackageRadial
Voltage200V
Capacitance10uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Rubycon 200LLE10MEFC8X11.5 technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Height
11.5mm
Lead Diameter
0.6mm
Lead Pitch
3.5mm
Leakage Current
100uA
Life (Hours)
15000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Bulk
Reach SVHC Compliant
No
Ripple Current (AC)
80mA
RoHS Compliant
Yes
Series
LLE
Tolerance
20%
Voltage
200V
Voltage Rating
200V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Rubycon 200LLE10MEFC8X11.5 Datasheet
Download the complete datasheet for Rubycon 200LLE10MEFC8X11.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

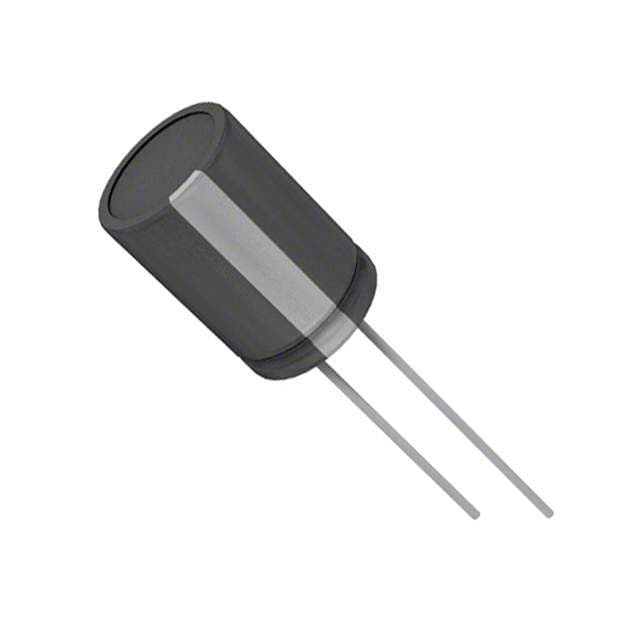

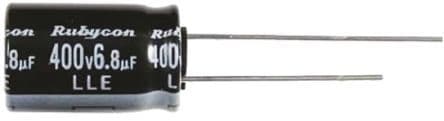

Product Images
