Aluminum electrolytic capacitor, 1000µF capacitance, 25V DC rated voltage, and 20% tolerance. Features a 1.1A ripple current rating, 65mΩ impedance, and a maximum operating temperature of 105°C. This cylindrical, surface-mount component offers a 5000-hour life and is AEC-Q200 qualified. Dimensions are 12.5mm diameter by 13.5mm height, with a 4.5mm lead pitch.
PackageRadial
Voltage25V
Capacitance1mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Rubycon 25TLV1000M12.5X13.5 technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
Cylindrical
Diameter
12.5mm
Dielectric Material
Aluminium
Height
13.5mm
Impedance
65mR
Lead Diameter
1.1mm
Lead Pitch
4.5mm
Leakage Current
3uA
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Cut Tape
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
1.1A
Ripple Current (AC)
1.1A
RoHS Compliant
Yes
Series
TLV
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Rubycon 25TLV1000M12.5X13.5 Datasheet
Download the complete datasheet for Rubycon 25TLV1000M12.5X13.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

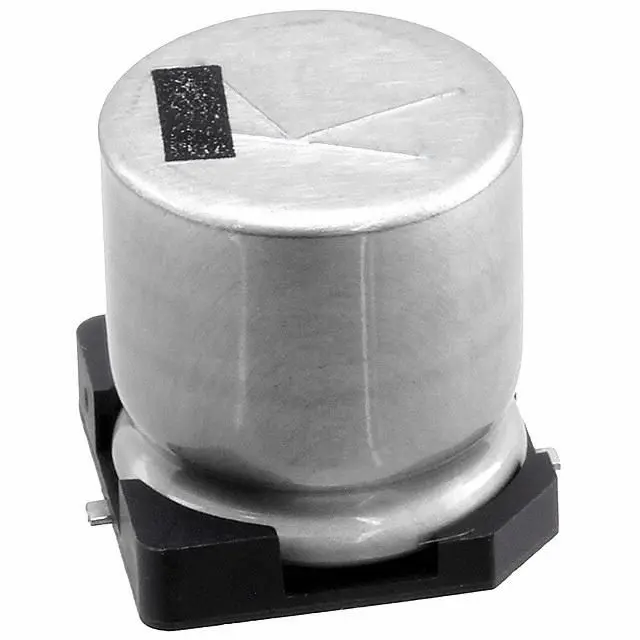

Product Images
