Automotive-grade aluminum electrolytic capacitor with 470µF capacitance and 25V DC rated voltage. Features 20% tolerance, 850mA ripple current, and low impedance of 80mΩ. Cylindrical construction with 10mm diameter and 10.5mm height, designed for surface mount (SMD/SMT) applications. Operates from -55°C to 105°C with a 5000-hour lifespan.
PackageRadial
Voltage25V
Capacitance470uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Rubycon 25TLV470M10X10.5 technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 10.5mm |
| Impedance | 80mR |
| Lead Diameter | 1.1mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.5mm |
| Leakage Current | 3uA |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 850mA |
| Ripple Current (AC) | 850mA |
| RoHS Compliant | Yes |
| Series | TLV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Rubycon 25TLV470M10X10.5 Datasheet
Download the complete datasheet for Rubycon 25TLV470M10X10.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

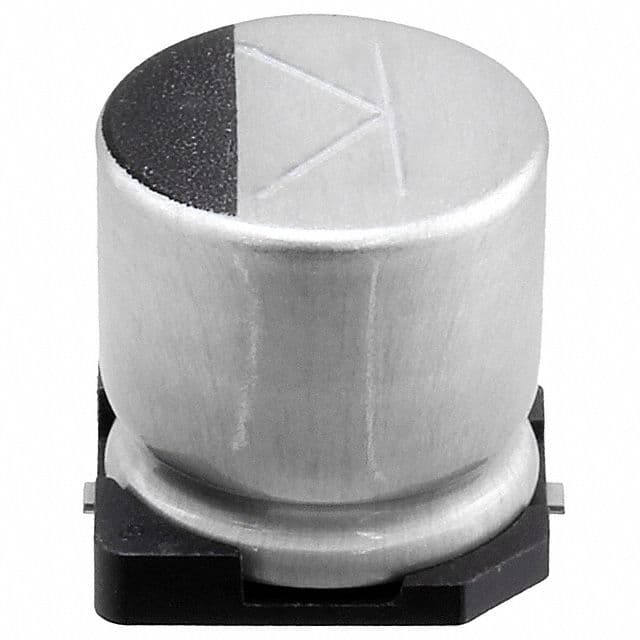

Product Images
