Aluminum electrolytic capacitor with 330µF capacitance and 25V DC rated voltage. Features a 20% tolerance, 1.43A ripple current capability, and low impedance of 27mΩ. Designed for through-hole mounting with a radial package measuring 10mm in diameter and 12.5mm in height, a 5mm lead pitch, and 0.6mm lead diameter. Operates across a wide temperature range from -40°C to 105°C, offering 4000 hours of life at rated conditions. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage25V
Capacitance330uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Rubycon 25ZLG330MEFC10X12.5 technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Height
12.5mm
Impedance
27mR
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
3uA
Life (Hours)
4000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
1.43A
RoHS Compliant
Yes
Series
ZLG
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Rubycon 25ZLG330MEFC10X12.5 Datasheet
Download the complete datasheet for Rubycon 25ZLG330MEFC10X12.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

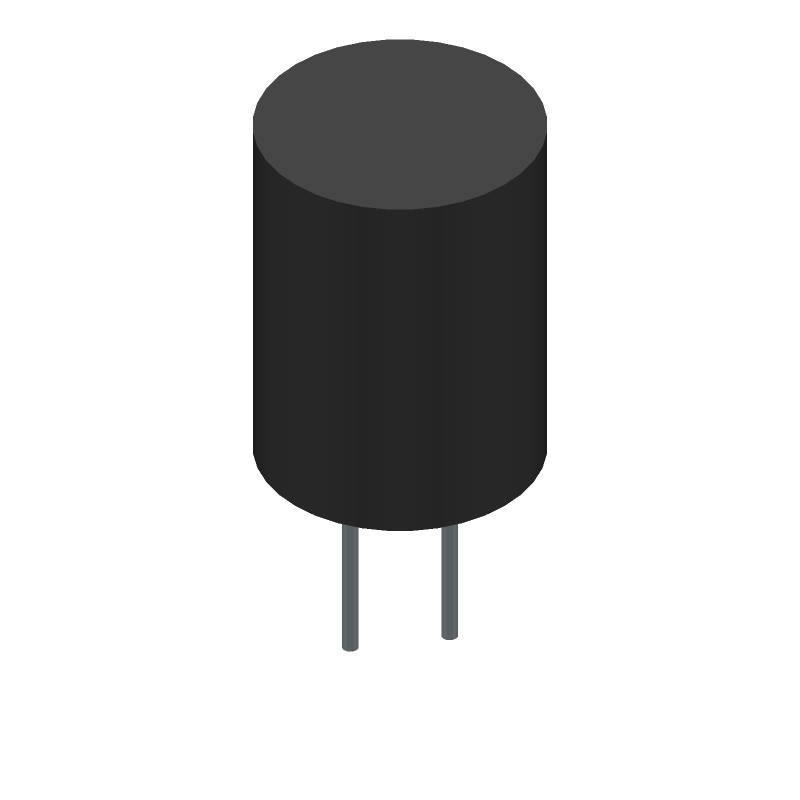

Product Images
