Technical Specifications
Rubycon 35ZA33M6.3X7 technical specifications.
General
Capacitance
33uF
Diameter
6.3mm
Dielectric Material
Aluminium
Height
7mm
Impedance
160mR
Lead Diameter
0.45mm
Lead Pitch
2.5mm
Leakage Current
11.55uA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Reach SVHC Compliant
No
Ripple Current (AC)
480mA
RoHS Compliant
No
Series
ZA
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Not Compliant
Datasheet
Rubycon 35ZA33M6.3X7 Datasheet
Download the complete datasheet for Rubycon 35ZA33M6.3X7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

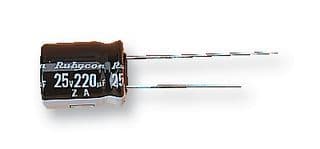

Product Images
