Aluminum electrolytic capacitor with 1500µF capacitance and 35V DC rated voltage. Features 20% tolerance, 13mΩ impedance, and 3.45A ripple current. Operates from -40°C to 105°C with a 10,000-hour lifespan. Radial package measures 12.5mm in diameter and 30mm in height with a 5mm lead pitch. RoHS compliant and lead-free.
PackageRadial
Voltage35V
Capacitance1.5mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Rubycon 35ZLH1500MEFC12.5X30 technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Height | 30mm |
| Height - Seated (Max) | 1.26inch |
| Impedance | 13mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 600 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.45A |
| Ripple Current (AC) | 3.45A |
| RoHS Compliant | Yes |
| Series | ZLH |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Rubycon 35ZLH1500MEFC12.5X30 Datasheet
Download the complete datasheet for Rubycon 35ZLH1500MEFC12.5X30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

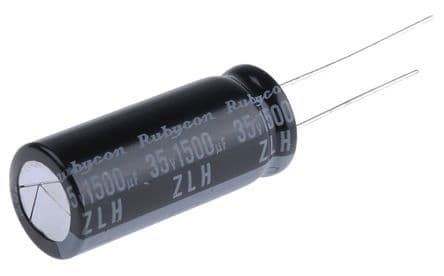

Product Images
