330µF polarized aluminum electrolytic capacitor with a 35V DC voltage rating. Features a 10mm diameter, 12.5mm height, and radial leaded construction for through-hole mounting. Offers 20% capacitance tolerance, 12% dissipation factor, and 39mΩ ESR/impedance. Operates from -40°C to 105°C with a 10000-hour life expectancy and 1.33A ripple current capability. RoHS compliant.
PackageRadial
Voltage35V
Capacitance330uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Rubycon 35ZLH330MEFC10X12.5 technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
39mR
Height
12.5mm
Impedance
39mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
3uA
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.33A
Ripple Current (AC)
1.33A
RoHS Compliant
Yes
Series
ZLH
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Rubycon 35ZLH330MEFC10X12.5 Datasheet
Download the complete datasheet for Rubycon 35ZLH330MEFC10X12.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

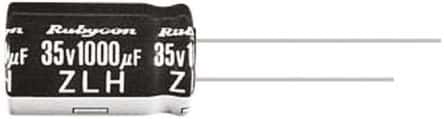

Product Images
