100µF, 50V aluminum electrolytic capacitor with 20% tolerance. Features a 350mA ripple current rating and 2000-hour life at 105°C. Surface mountable in an 8mm diameter by 10.5mm height cylindrical package. Low ESR of 340mΩ.
PackageRadial
Capacitance100uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Rubycon 50TZV100M8X10.5 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 340mR |
| Features | General Purpose |
| Height | 10.5mm |
| Height - Seated (Max) | 0.413inch |
| Impedance | 340mR |
| Lead Free | Lead Free |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 350mA |
| Ripple Current (AC) | 350mA |
| RoHS Compliant | Yes |
| Series | TZV |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Rubycon 50TZV100M8X10.5 Datasheet
Download the complete datasheet for Rubycon 50TZV100M8X10.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

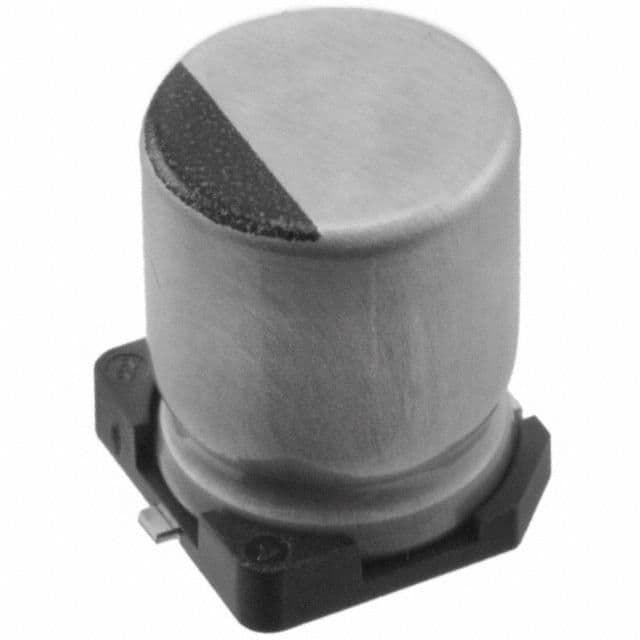

Product Images
