Aluminum electrolytic capacitor, 47µF capacitance, 63V DC rated voltage, and 20% tolerance. Features a 10mm diameter, 12.5mm height, and 5mm lead pitch for radial mounting. Offers 400mA ripple current, 270mΩ impedance, and a 2000-hour life at 130°C. Operates from -40°C to 130°C with a leakage current of 3µA. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage63V
Capacitance47uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Rubycon 63RX3047M10X12.5 technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 12.5mm |
| Height - Seated (Max) | 0.551inch |
| Impedance | 270mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 400mA |
| Ripple Current (AC) | 400mA |
| RoHS Compliant | Yes |
| Series | RX30 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Rubycon 63RX3047M10X12.5 Datasheet
Download the complete datasheet for Rubycon 63RX3047M10X12.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

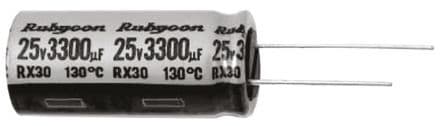

Product Images
