Radial aluminum electrolytic capacitor with 680µF capacitance and 63V voltage rating. Features 20% tolerance, 2.78A ripple current, and 29mΩ impedance. Operates from -40°C to 105°C with a 5000-hour lifespan. Dimensions are 12.5mm diameter by 40mm height, with a 5mm lead pitch. Through-hole mounting and bulk packaging.
PackageRadial
Voltage63V
Capacitance680uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Rubycon 63ZL680MEFC12.5X40 technical specifications.
General
Capacitance
680uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Height
40mm
Impedance
29mR
Lead Diameter
0.6mm
Lead Pitch
5mm
Leakage Current
3uA
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
2.78A
RoHS Compliant
Yes
Series
ZL
Termination
Radial
Tolerance
20%
Voltage
63V
Voltage Rating
63V
Compliance
RoHS
Compliant
Datasheet
Rubycon 63ZL680MEFC12.5X40 Datasheet
Download the complete datasheet for Rubycon 63ZL680MEFC12.5X40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

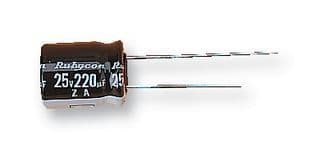

Product Images
