This 50V ceramic capacitor has a capacitance of 1nF with a 5% tolerance. It is constructed with a flat, multilayer ceramic (MLCC) dielectric and is available in a 0603 package. The capacitor is surface mountable and has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is RoHS compliant and packaged on tape and reel.
Package0603
Capacitance1nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL10B102JB8NFNC technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X7R |
| Height | 0.8mm |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 5% |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL10B102JB8NFNC Datasheet
Download the complete datasheet for Samsung CL10B102JB8NFNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

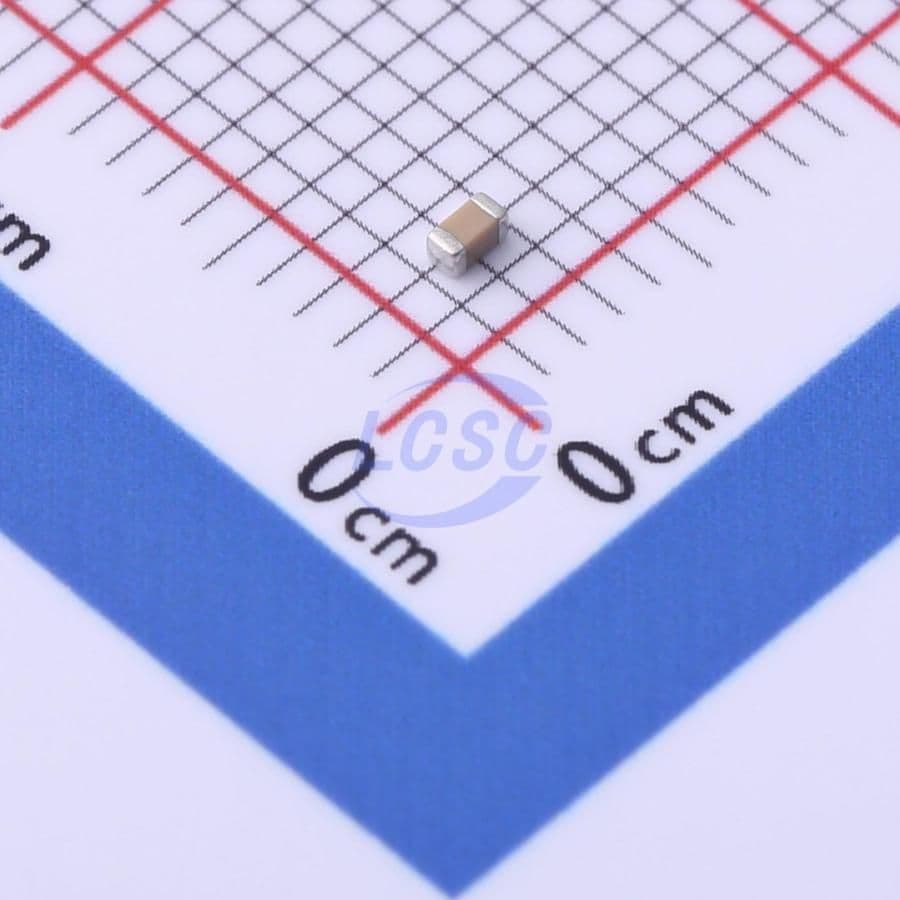

Product Images
