Multilayer Ceramic Capacitor (MLCC) with 10µF capacitance and 10V voltage rating. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) surface mount package. Operates from -55°C to 125°C, constructed with ceramic material, and supplied in tape and reel packaging. RoHS compliant.
Package0805
Capacitance10uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL21B106KPQNNNE technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL21B106KPQNNNE Datasheet
Download the complete datasheet for Samsung CL21B106KPQNNNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

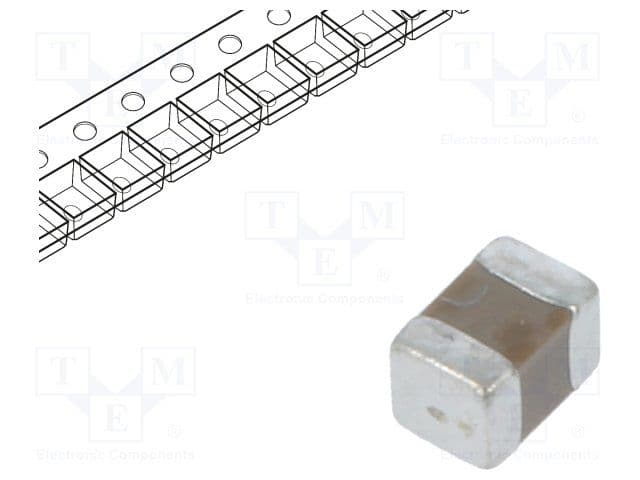

Product Images
