Technical Specifications
Samsung CL21C332JBFNNNE technical specifications.
General
| Capacitance | 3.3nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | C0G |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL21C332JBFNNNE Datasheet
Download the complete datasheet for Samsung CL21C332JBFNNNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

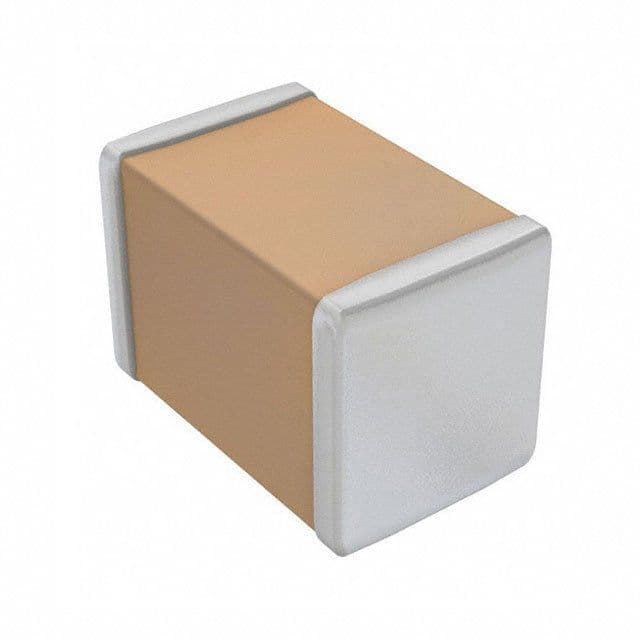

Product Images
