Package1206
Capacitance100pF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL31C101JCCNFNC technical specifications.
General
Capacitance
100pF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric
C0G
Height
0.85mm
Length
0.126inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
CL
Thickness
0.039inch
Tolerance
5%
Voltage Rating
100V
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Samsung CL31C101JCCNFNC Datasheet
Download the complete datasheet for Samsung CL31C101JCCNFNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

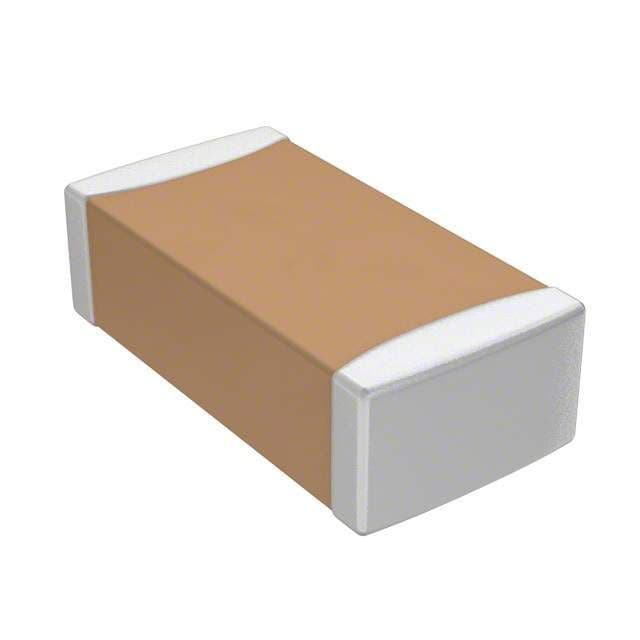

Product Images
