MTSW-105-27-L-D-1060

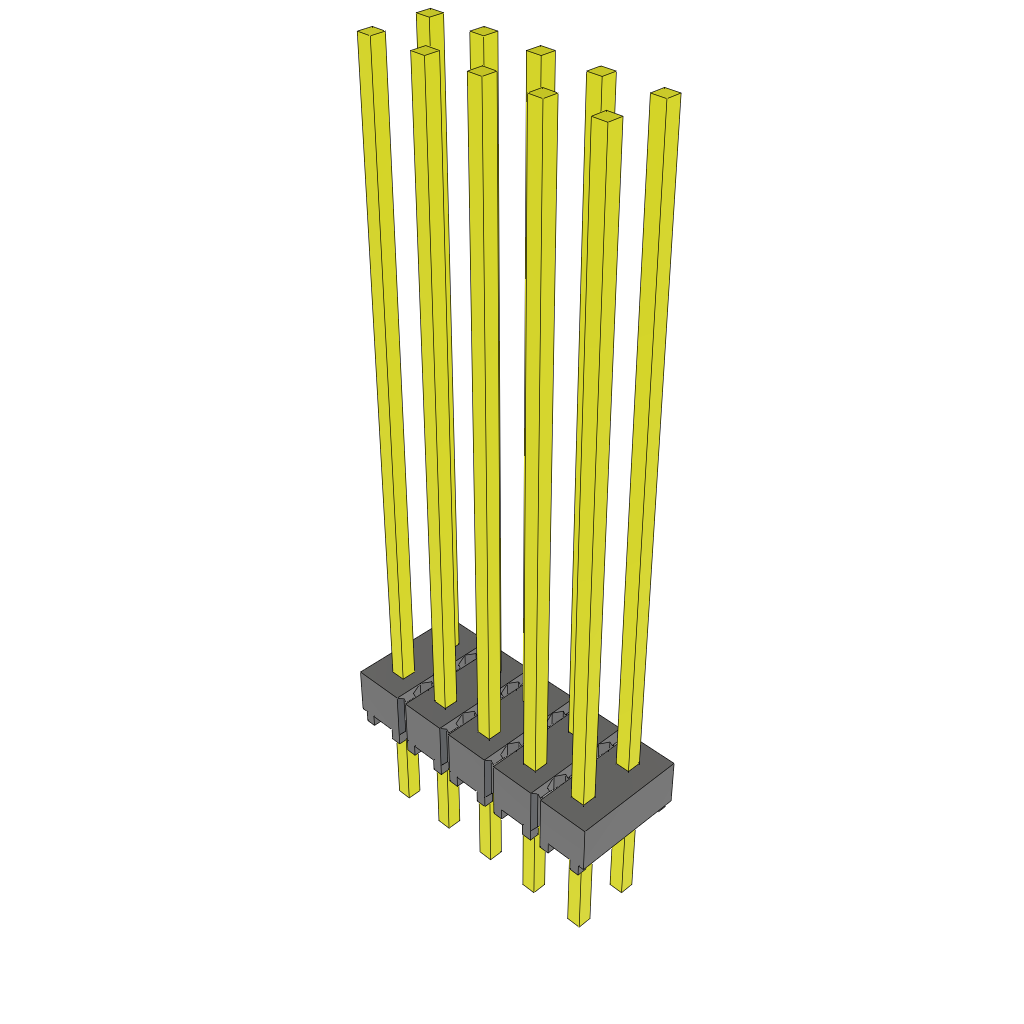

10-Contact Unshrouded HDR Header, 2.54mm Pitch, 2 Rows, Through Hole Mount
The MTSW-105-27-L-D-1060 is a 10-contact unshrouded header from Samtec, designed for board-to-board connections. It features a 2.54mm terminal pitch and a straight body orientation. The header is rated for a maximum current of 3A per contact and can operate within a temperature range of -55°C to 125°C. It is available for through-hole mounting and is suitable for use in a variety of applications.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTSW-105-27-L-D-1060 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 10 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 29.46mm |
| Mating Length | 26.92mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec MTSW-105-27-L-D-1060 Datasheet
Download the complete datasheet for Samtec MTSW-105-27-L-D-1060 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
