Samtec
PCIE-164-02-F-D-TH
Conn PCI Express Card Edge SKT 164 POS 1mm Solder ST Thru-Hole PCI Express® Tube
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec PCIE-164-02-F-D-TH technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
2.5A
Depth
11mm
Gender
Female
Housing Color
Black
Insulation Material
Nylon
Length
89mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
164
Number of Positions
164
Number of Rows
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
1mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PCI Express® (PCIe)
Termination
Solder
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Samtec PCIE-164-02-F-D-TH Datasheet
Download the complete datasheet for Samtec PCIE-164-02-F-D-TH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

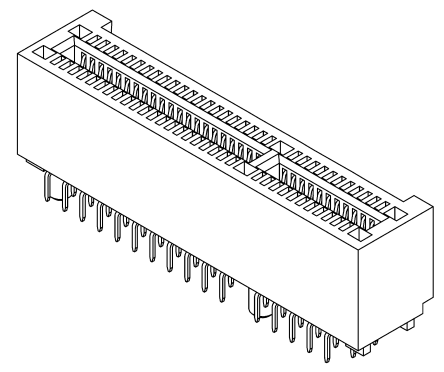

Product Images
