46-position, 2-row shrouded socket strip with 2.54mm pitch for board-to-board applications. Features gold-plated bronze female socket contacts with a square shape, suitable for surface mount termination. Operates within a -55°C to 125°C temperature range, with a 405V AC and 572V DC voltage rating. Constructed with a black polymer insulator and housing, this RoHS compliant component is supplied in bulk packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-123-L-DV technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Gender
Receptacle
Height
7.37mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
58.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
46
Number of Positions
46
Number of Rows
2
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SSM
Termination
Solder
Voltage Rating (AC)
405V
DC Rated Voltage
572V
Width
5.08mm
Compliance
RoHS
Compliant
Datasheet
Samtec SSM-123-L-DV Datasheet
Download the complete datasheet for Samtec SSM-123-L-DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

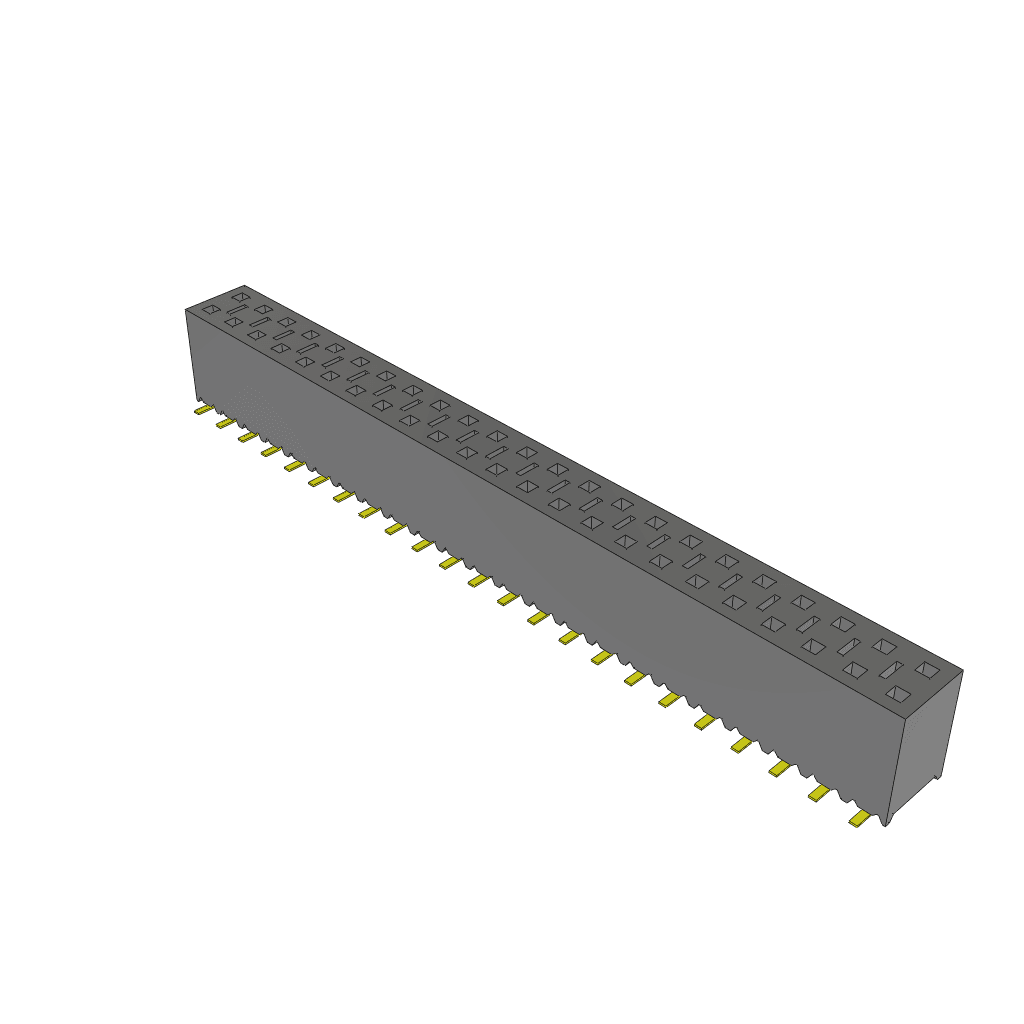

Product Images
