10-position, 2-row right-angle IDC socket connector with a 2mm pitch. Features gold-plated copper female socket contacts for reliable termination. Designed for ribbon cable mounting with a 28AWG wire gauge. Operates within a -40°C to 105°C temperature range. Black housing and black color.
MountingFree Hanging
Quick Jump:
Technical Specifications
Samtec TCSD-05-01 technical specifications.
General
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Depth | 4mm |
| Housing Color | Black |
| Length | 14mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 41 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | Tiger Eye™ TCSD |
| Termination | IDT |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Ribbon |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TCSD-05-01 Datasheet
Download the complete datasheet for Samtec TCSD-05-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

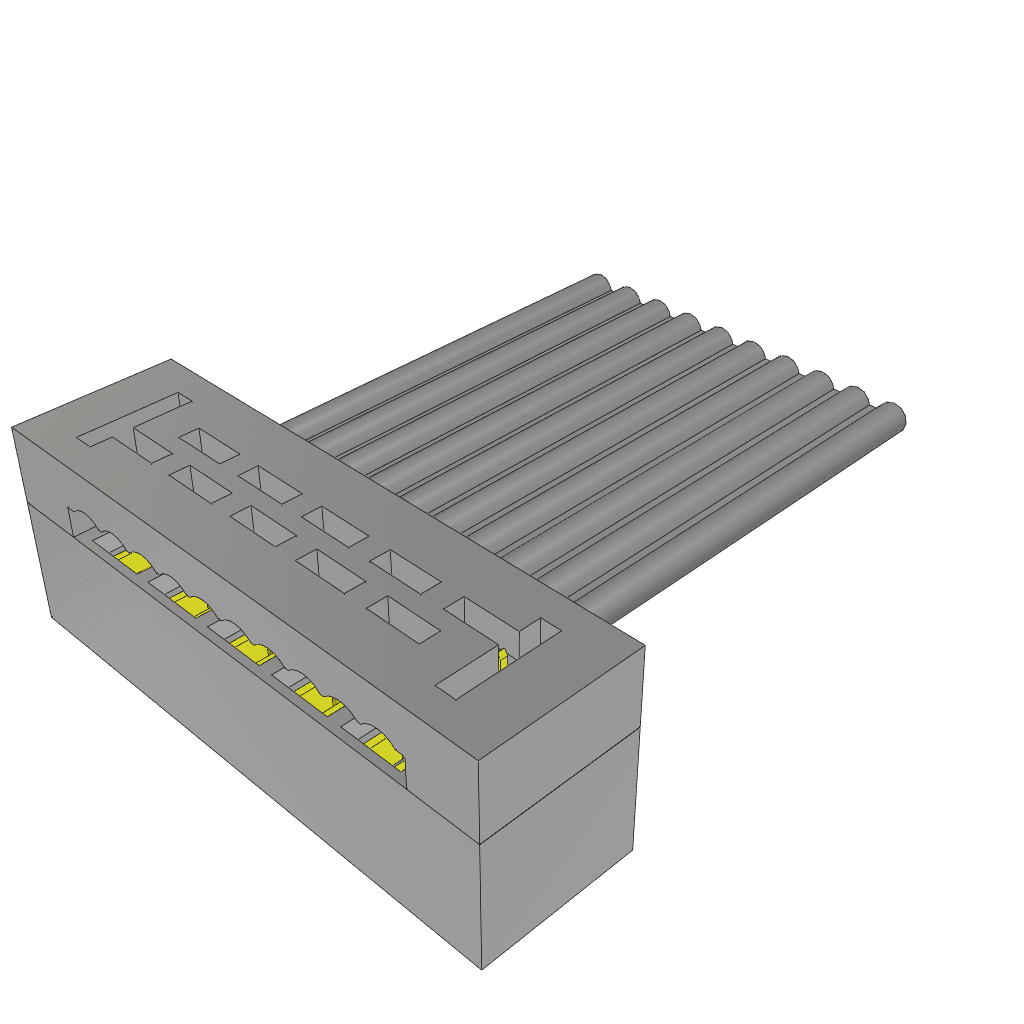

Product Images
