Single-phase power line EMI/RFI filter designed for chassis mounting. Features a 20A current rating and a maximum AC voltage rating of 250V. Includes 600µH inductance and 100nF capacitance for effective noise suppression. Operates across a frequency range of 0 to 400 Hz, with a maximum operating temperature of 100°C. Compliant with RoHS standards and carries UL, CSA, and ENEC approvals.
Frequency400Hz
Current20A
Capacitance100nF
Resistance1MR
Quick Jump:
Technical Specifications
Schaffner FN2010-20-06 technical specifications.
General
| Approvals | UL, CSA, ENEC |
| Capacitance | 100nF |
| Current | 20A |
| Current Rating | 20A |
| Depth | 85mm |
| Frequency | 400Hz |
| Height | 30.3mm |
| Inductance | 600uH |
| Leakage Current | 400uA |
| Length | 54mm |
| Max Current Rating | 20A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 16 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Resistance | 1MR |
| RoHS Compliant | Yes |
| Series | FN 2010 |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 54mm |
| Wire/Cable Gauge | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN2010-20-06 Datasheet
Download the complete datasheet for Schaffner FN2010-20-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

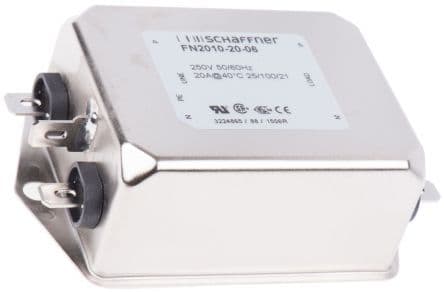

Product Images
