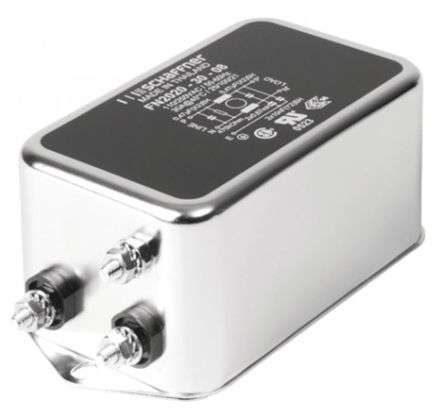

Chassis mountable, single-phase line filter rated for 250VAC and 30A. Features 670µH inductance and 470nF capacitance, with a resistance of 470kΩ. Operates across a frequency range of 0 to 400 Hz, with a temperature range of -25°C to 100°C. Dimensions are 57.5mm length, 113.5mm depth, and 45.4mm height. Threaded termination for secure connection. RoHS compliant.
Frequency0 to 400 Hz
Current30A
Capacitance470nF
Resistance470kR
Quick Jump:
Technical Specifications
Schaffner FN2020-30-08 technical specifications.
General
Capacitance
470nF
Current
30A
Current Rating
30A
Depth
113.5mm
Height
45.4mm
Inductance
670uH
Length
57.5mm
Max Current Rating
30A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Chassis Mount, Chassis
Number of Phases
1
Operating Frequency
0 to 400 Hz
Package Quantity
5
Packaging
Box
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
470kR
RoHS Compliant
Yes
Series
FN 2020
Termination
Threaded
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schaffner FN2020-30-08 Datasheet
Download the complete datasheet for Schaffner FN2020-30-08 to view detailed technical specifications.
