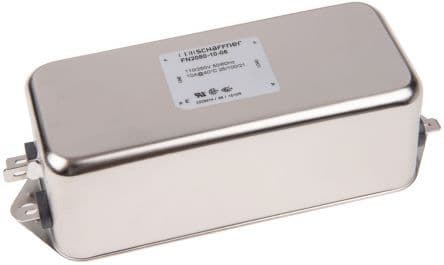

Single-phase EMI/RFI power line filter designed for 250V AC operation at 50/60Hz. Features 10A current rating, 4.5mH inductance, and 1uF capacitance for effective noise suppression. Chassis mountable with quick connect terminations, operating from -25°C to 100°C. UL, CSA, and ENEC approvals confirm compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN2080-10-06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, ENEC |
| Capacitance | 1uF |
| Current | 10A |
| Current Rating | 10A |
| Depth | 156mm |
| Height | 45.4mm |
| Inductance | 4.5mH |
| Leakage Current | 400uA |
| Length | 57.5mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 220kR |
| RoHS Compliant | Yes |
| Series | FN 2080 |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 57.5mm |
| RoHS | Compliant |
